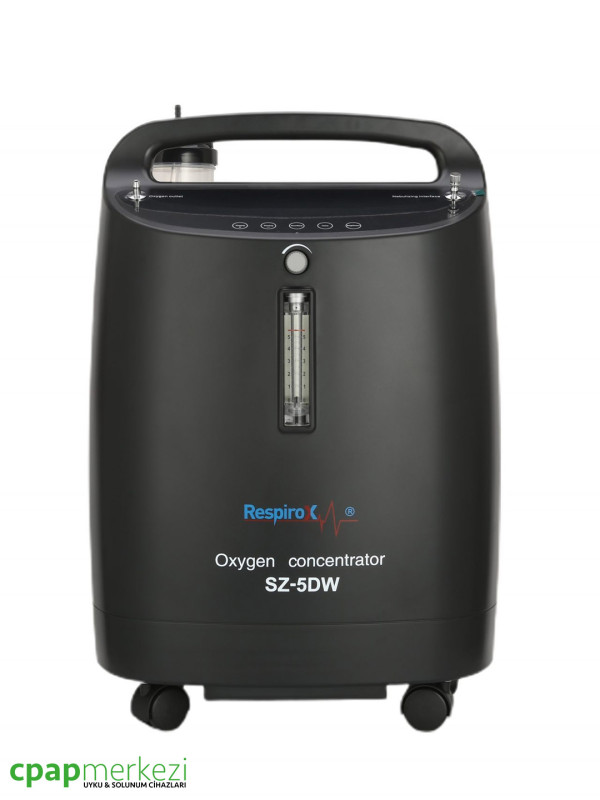

Respirox SZ-5DW 5 L/min Turkish Speaking Oxygen Concentrator with Nebulizer

Respirox SZ-5DW 5 L/min Turkish Speaking Oxygen Concentrator with Nebulizer

A FIRST with Turkish speaking feature!

Model SZ-5DW

Operating Voltage 220-240V / AC Frequency 50 Hz.

Language Turkish

Oxygen Flow 1- 5 liters/minute

Oxygen Purity 87% ~ 95.5%

Oxygen Monitor High Oxygen O2 > 93%+3 Low Oxygen O2 < 86%+3

Technical Service Requirement < 70%

Operating Temperature 5- 40 °C

Gross Weight 21 kg

Net Weight 19 kg

Type B

Class II

Noise Level : <= 58 dBA

Time settings working mode

Instant oxygen density display

Efficient working system that provides high energy saving compared to conventional oxygen concentrators

CE and ISO Certified Alarm Approved by the Ministry of Health; Power failure, high and low pressure, temperature (65°) low saturation.

Preparation for use

1. Unscrew the water container by turning it counterclockwise. Fill the water container with distilled water (or distilled water) as specified by the manufacturer. (see Figure 1).

2. Install the water container by turning it clockwise.

3. Plug in the power supply.

4. Press the power button, then the on/off button on the panel, the oxygen concentrator will start in a few seconds.

Oxygen absorption process

1. Set the flowmeter value to the value specified by your doctor.

CAUTION: If the flow rate read on the flow meter drops below 0.5 L/min, check your hose and accessories for clogging or any problems with your water container.

2. Connect one end of the nasal oxygen cannula to the oxygen outlet and the other end to the patient.

Timing function

 The oxygen concentrator has a timing function; time range 10~240 minutes.

 Start the concentrator. “--” is displayed in the timer and indicates that it is in continuous operation mode.

 “+” key; Each time you press this button, 10 minutes will be added to the timing, if you press it longer than 1.5 seconds, the time will continue to increase until the button is released.

 “-” key; Each time you press this button, the timing will be shortened by 10 minutes, if you press it longer than 1.5 seconds, the time will continue to decrease until the button is released.

Nebulization function

 Fill the nebulization cup with the appropriate medical liquid. (Please follow your doctor's advice and do not exceed the maximum level of the nebulization cup.)

 Remove the nebulization cap on the nebulization interface upwards.

 Connect the air hose to the Nebulization cup and its interface, then start the oxygen concentrator. You can start nebulization therapy.

 After the nebulization medication is finished, turn the nebulization cap towards the nebulization interface to tighten it. Turn off the oxygen concentrator if oxygen therapy will not be performed.
